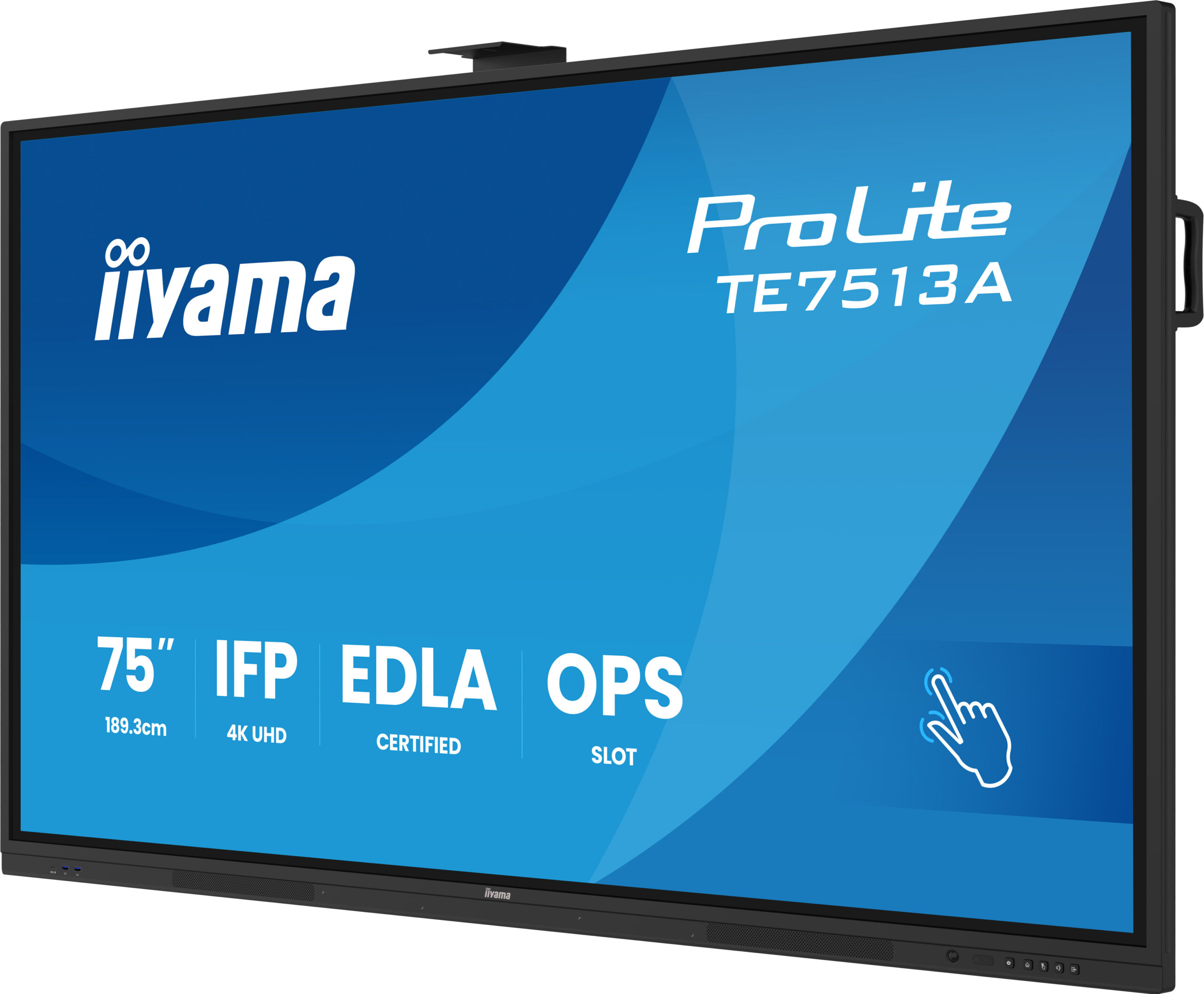

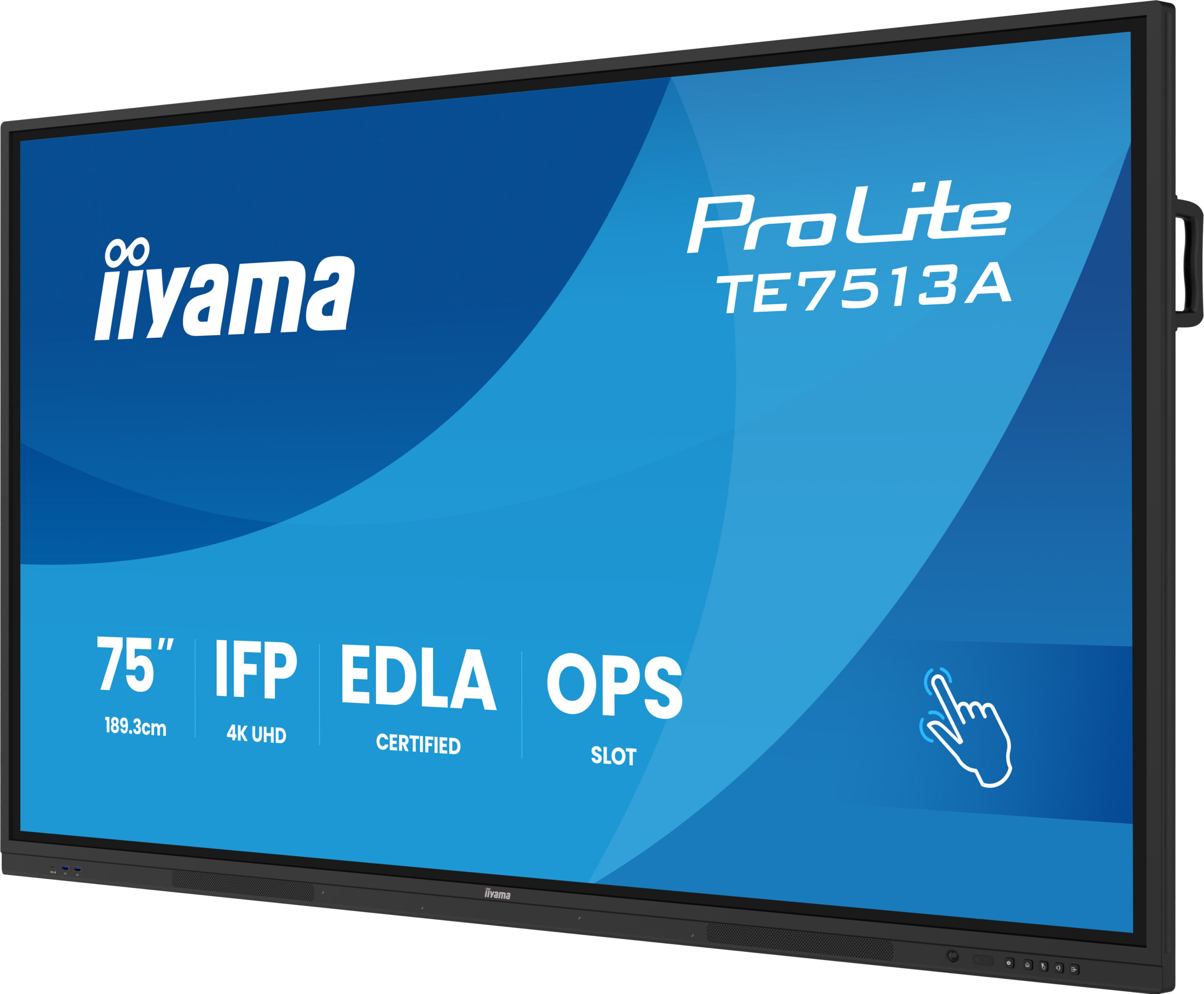

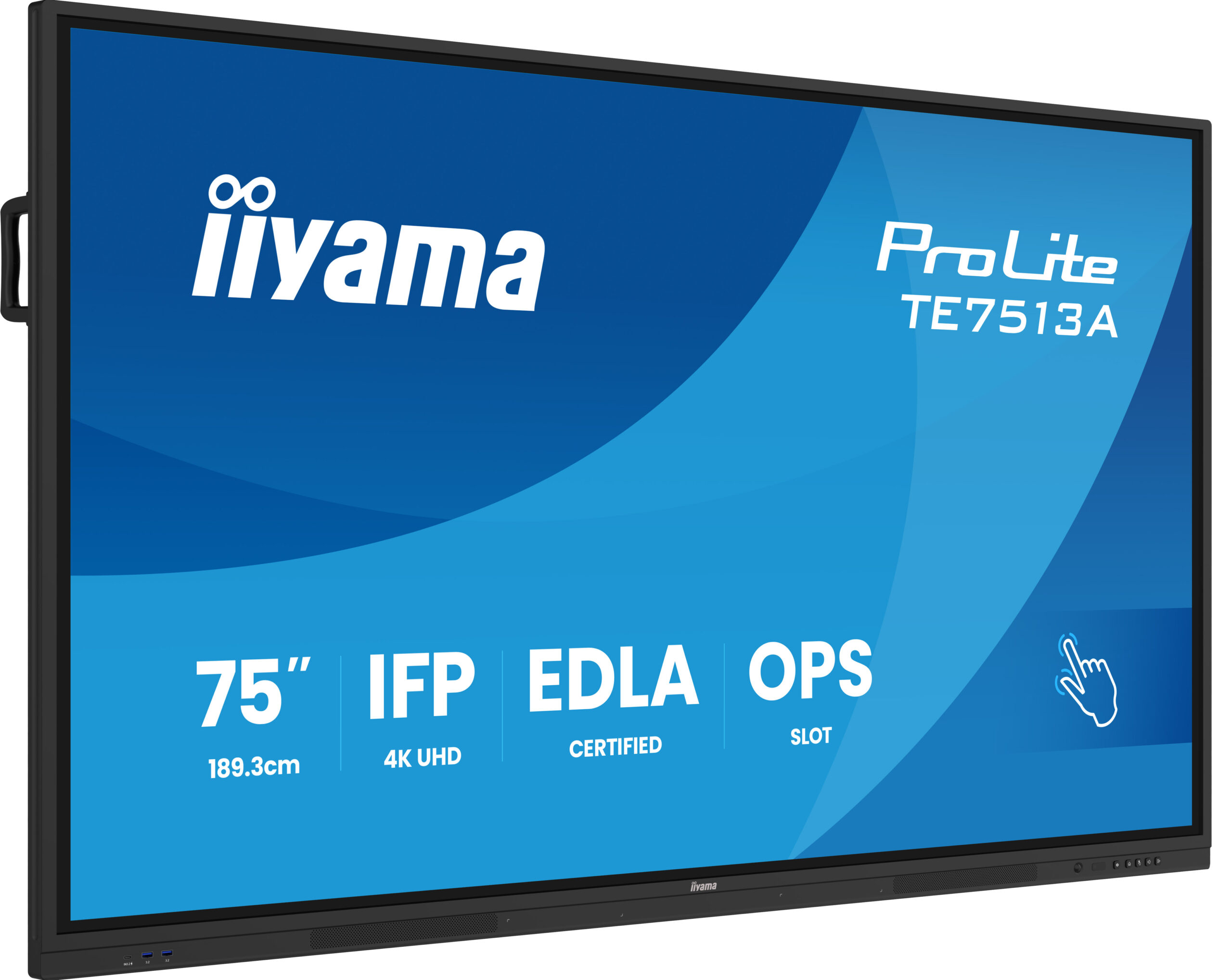

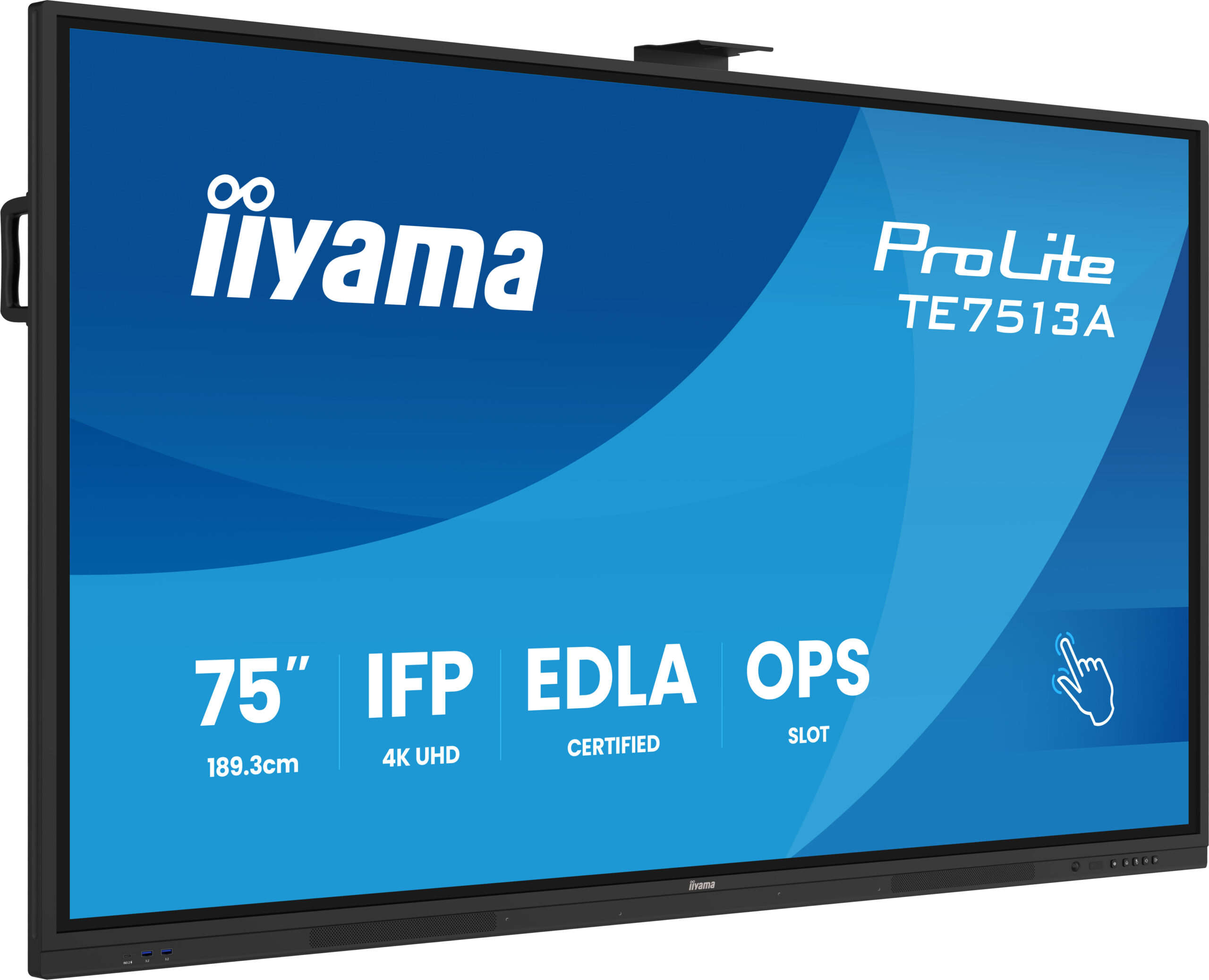

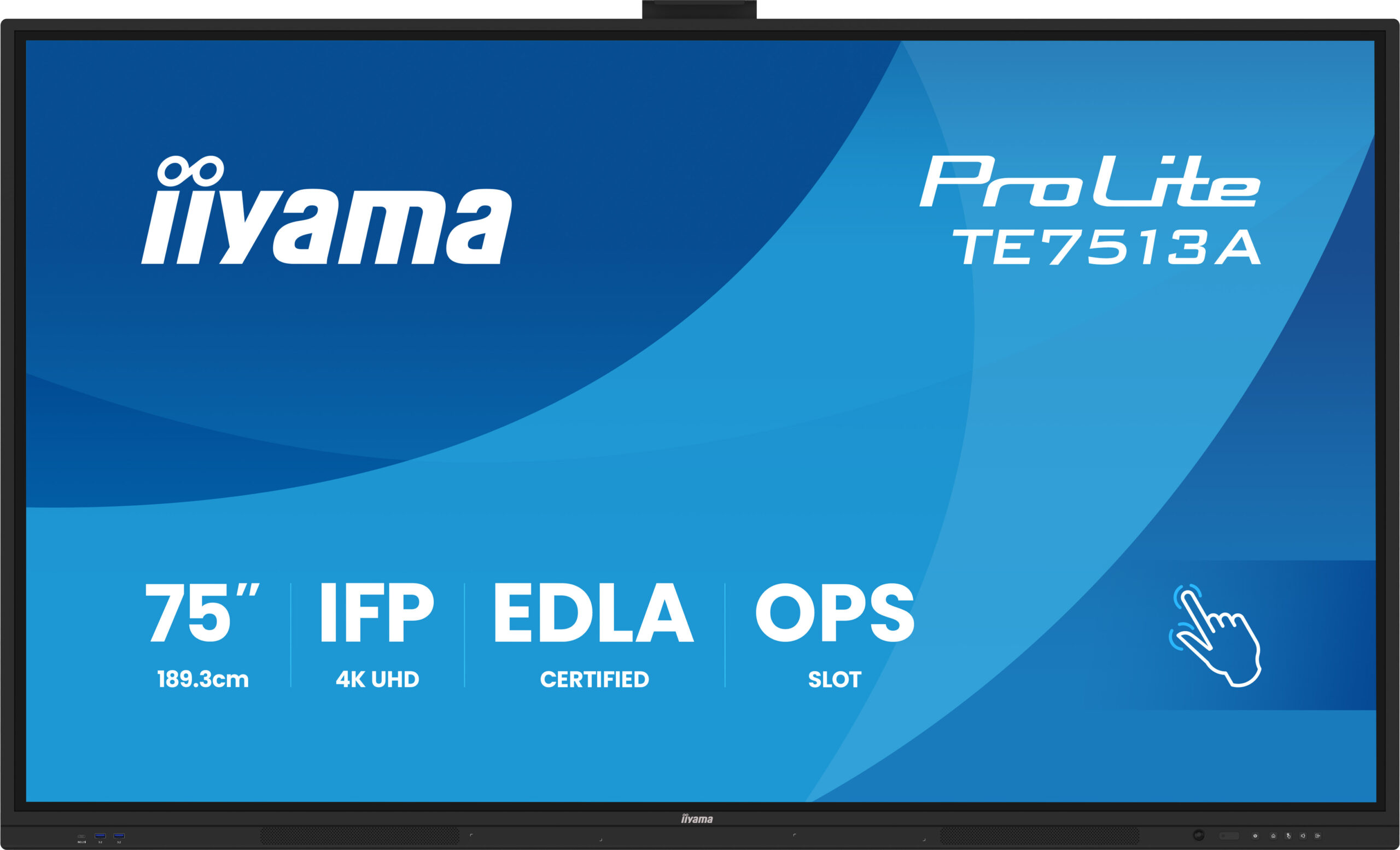

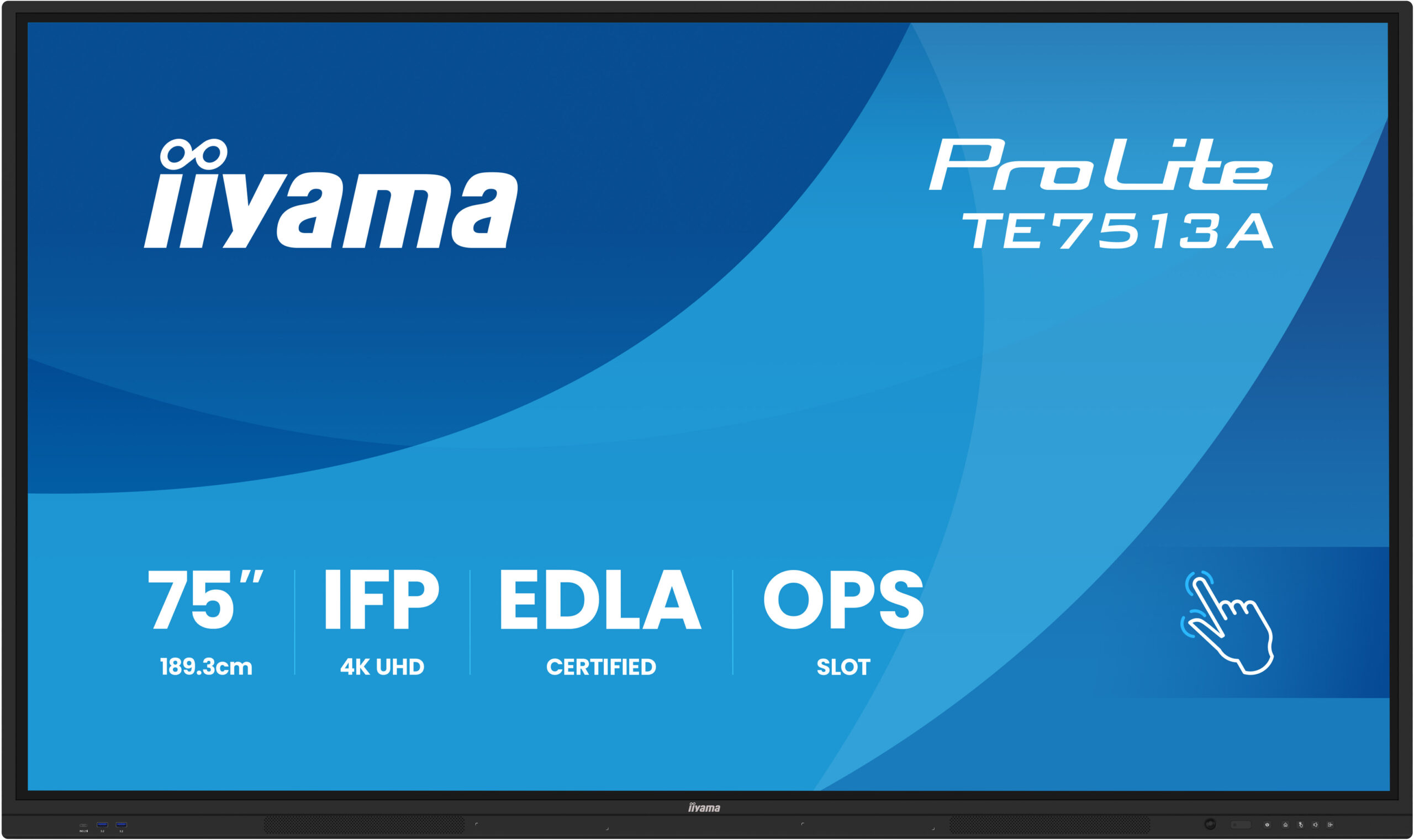

75 inch Pro-Lite TE7513A-B3AG Black Interactive Display
65 in stock
The TE7513A-B3AG is a 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with BT 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
| Panel type | IPS |
|---|---|
| Display diagonal | 190.5 cm (75") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Multi-touch | Yes |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.4296 x 0.4296 mm |
| Active display area (W x H) | 1650 x 928 mm |
| Display diagonal (metric) | 189.3 cm |
| Colour saturation | 72% |
| Horizontal scan range | 30 - 135 kHz |
| Haze rate | 25% |
| Surface hardness | 7H |
| Touch response time | 5 ms |
| Glass thickness | 3.2 mm |
| HDMI ports quantity | 3 |
|---|---|
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| Consumer Electronics Control (CEC) | Yes |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 6 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 interface | Yes |
| RS-232C | Yes |
| OPS module slot | Yes |
| Audio Return Channel (ARC) | Yes |
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Product design | Interactive flat panel |
|---|---|
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |

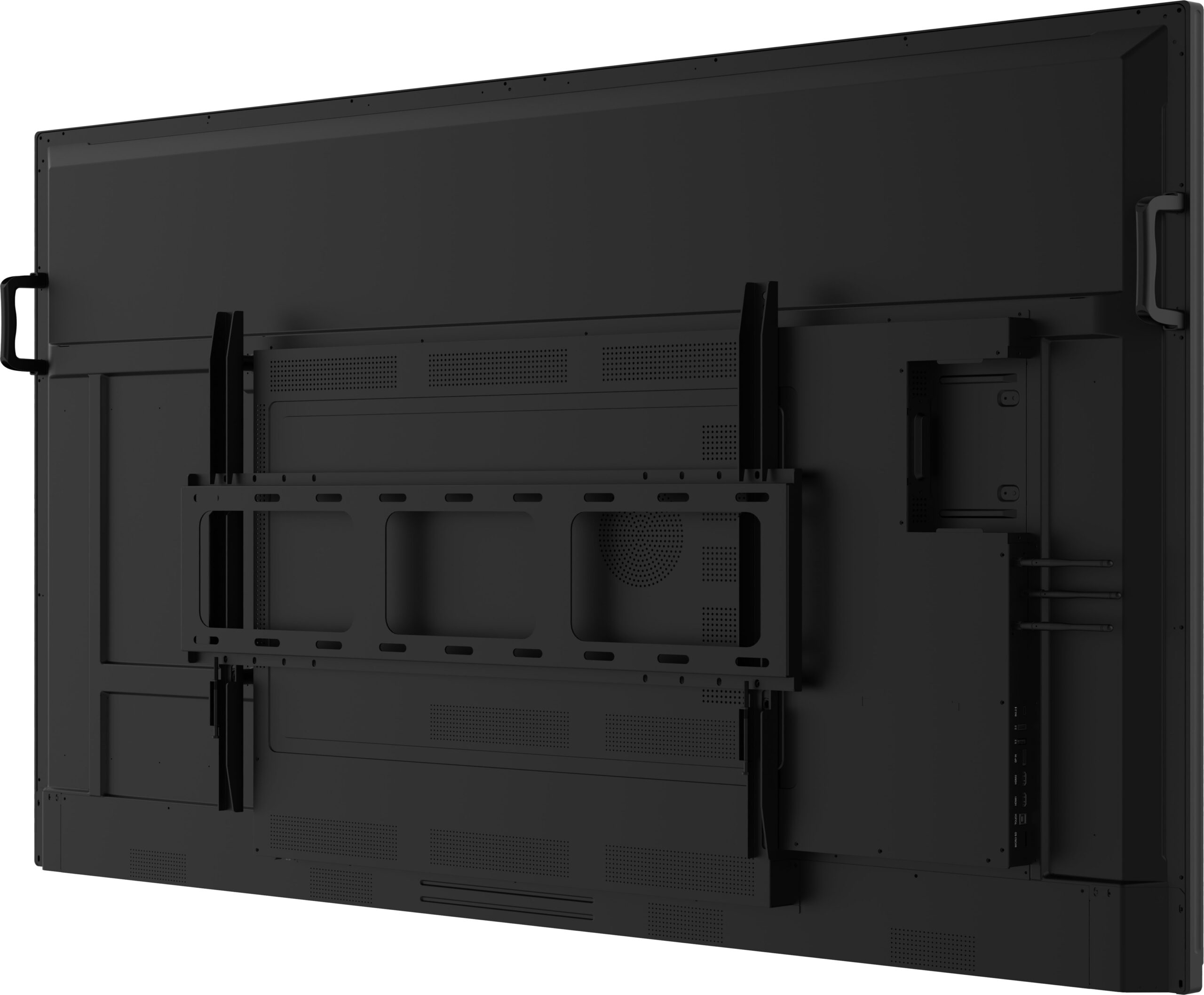

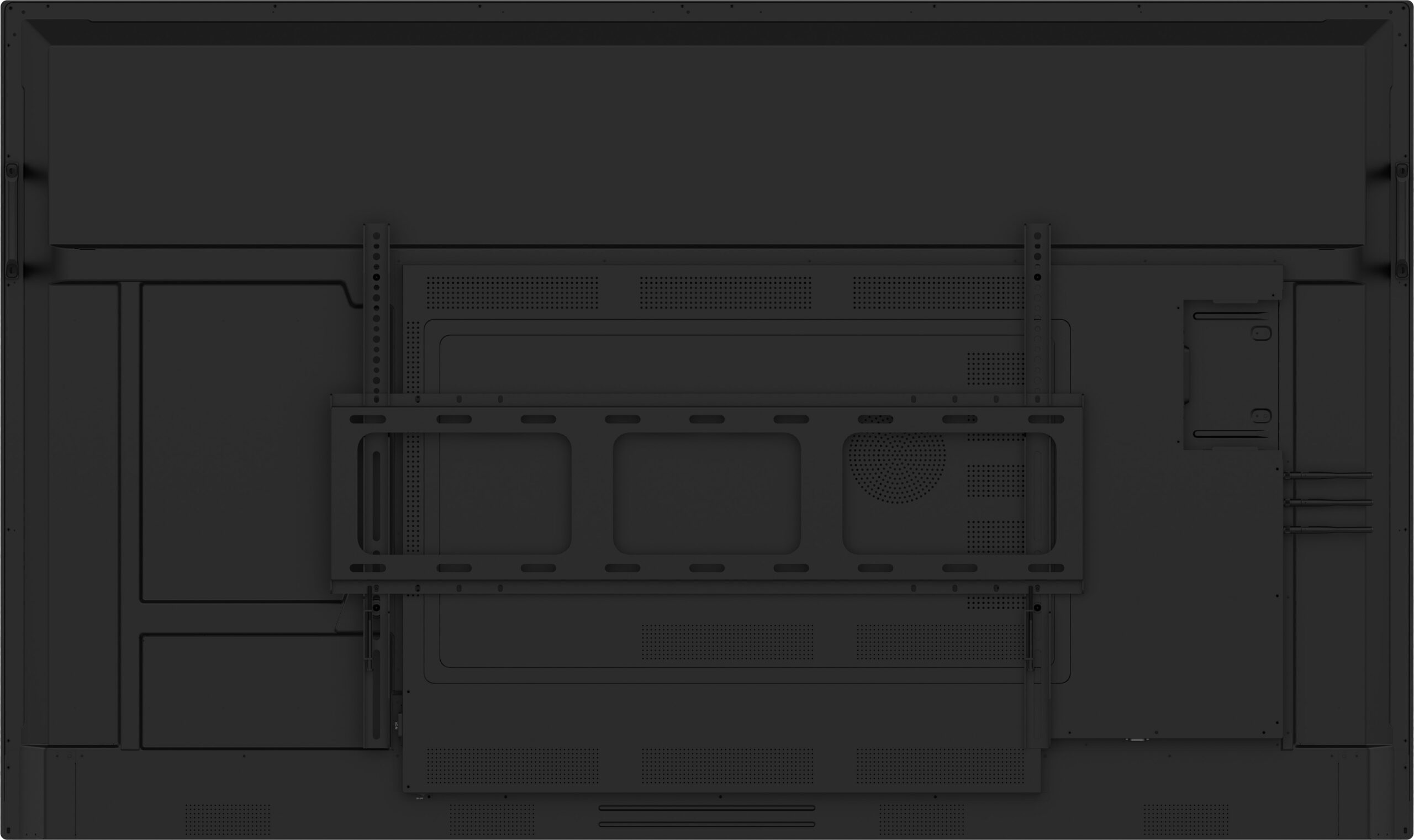

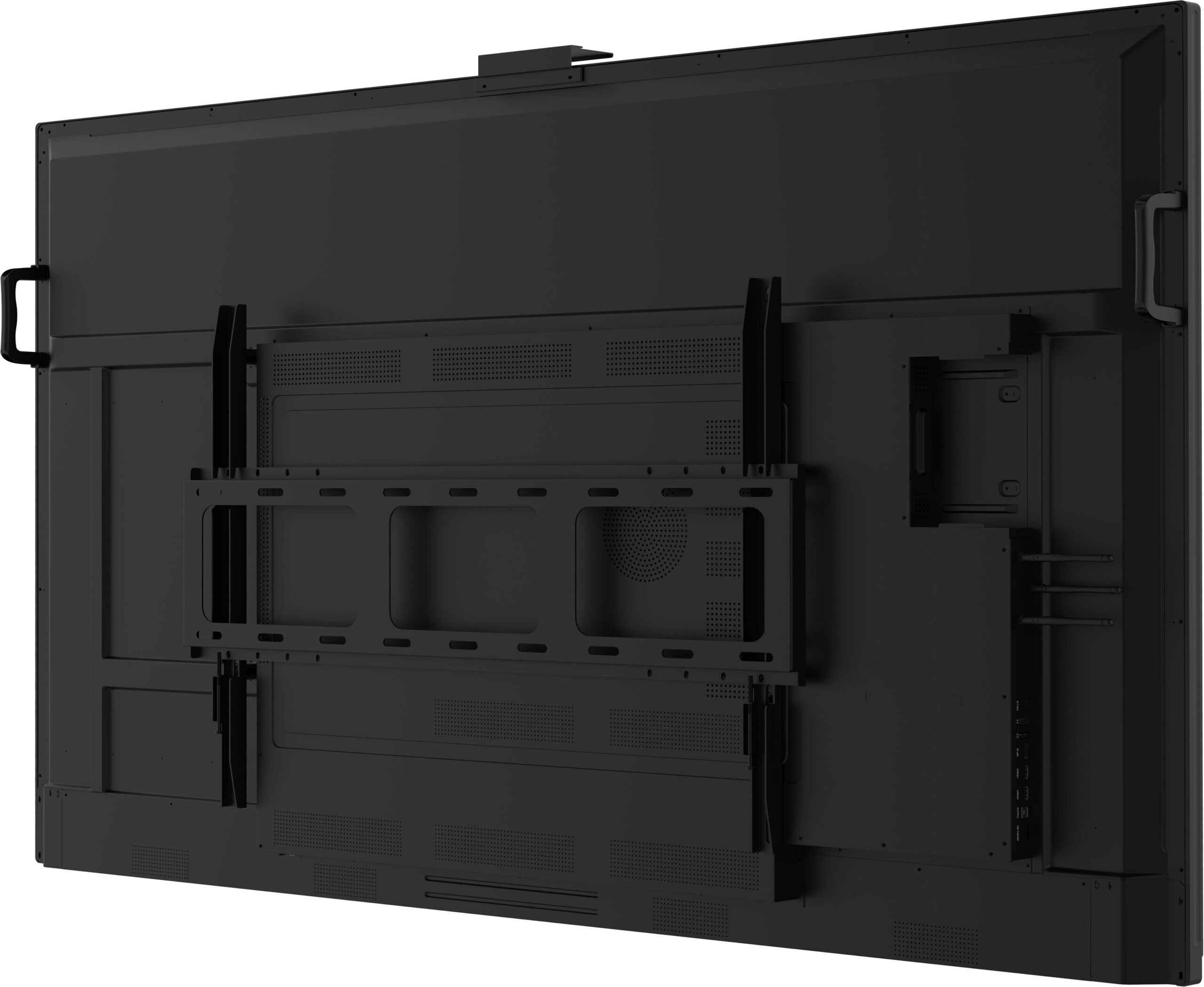

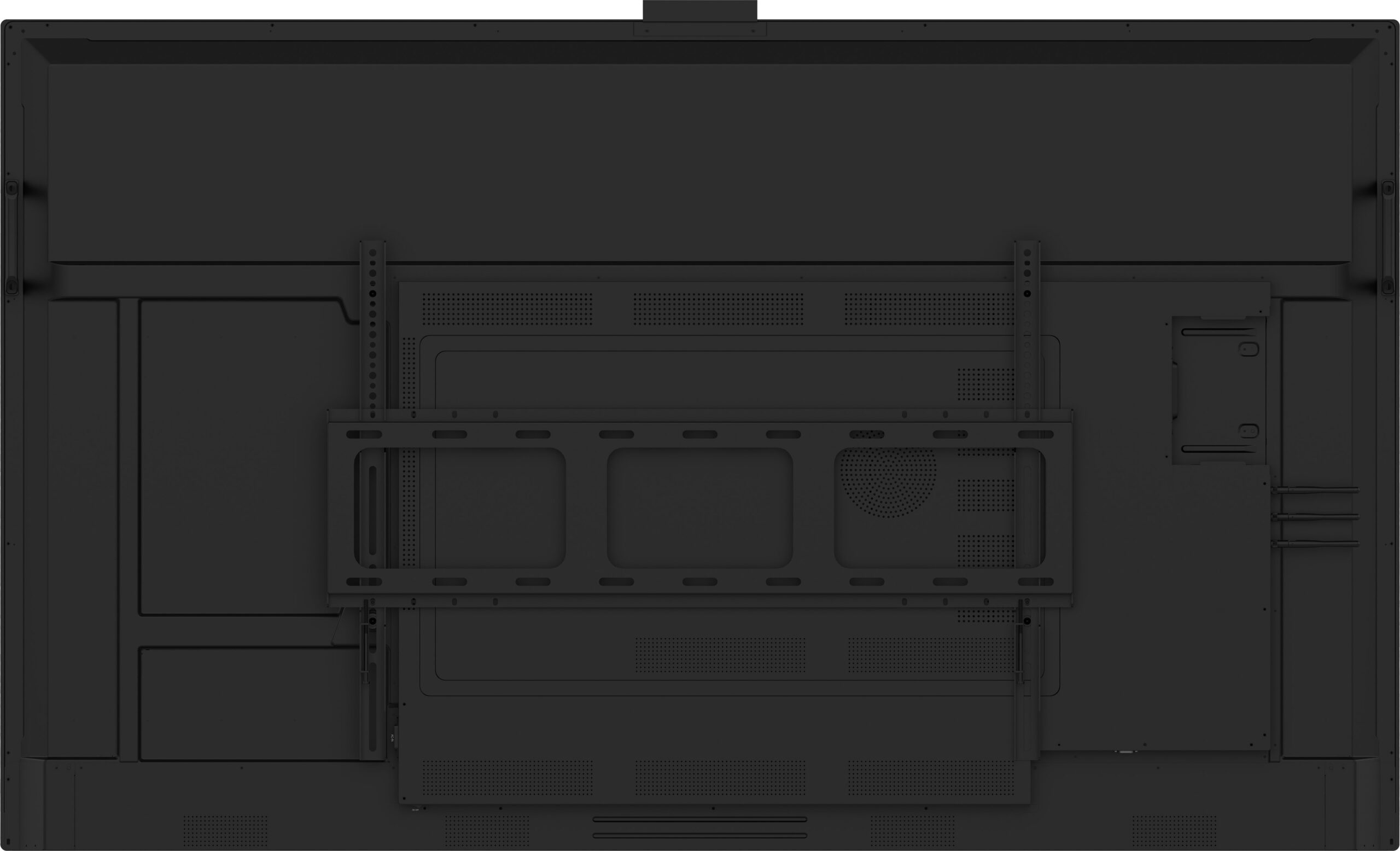

| VESA mounting | Yes |
| Panel mounting interface | 800 x 400 mm |
| Bezel width (bottom) | 4.67 cm |
| Bezel width (side) | 1.67 cm |
| Bezel width (top) | 1.41 cm |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Purpose | Commercial |
|---|---|
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 188 W |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | Yes |
|---|---|
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3576 |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Processor cores | 8 |
| Internal memory | 6 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Display width | 1710 mm |
|---|---|
| Display depth | 87 mm |
| Display height | 1016 mm |
| Display weight | 51.8 kg |
| Width | 1710 mm |
| Depth | 87 mm |
| Height | 1016 mm |
| Weight | 51.8 kg |
| Package width | 1860 mm |
|---|---|
| Package depth | 185 mm |
| Package height | 1125 mm |
| Package weight | 63 kg |
| Remote control included | Yes |
|---|---|
| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Cables included | AC, USB, HDMI |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Products per pallet | 6 pc(s) |
|---|
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Audio in (mini jack) | Yes |
|---|---|
| OPS slot | 1 |
| Playback media | Y |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Sustainability certificates | ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Quick start guide | Yes |
|---|---|
| Bluetooth version | 5.0 |
| Brightness | 500 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
