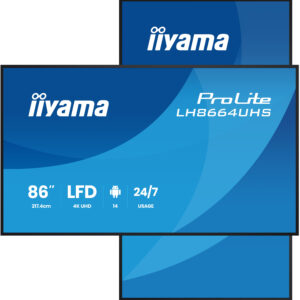

iiyama 86 inch ProLite LH8664UHS-B3AG Commercial Display
£1,158.89
75 inch Black Large Format Display 4K UHD 500cd/m2 24/7
19 in stock
The letters ‘CE’ appear on many products traded on the extended Single Market in the European Economic Area (EEA). They signify that products sold in the EEA have been assessed to meet high safety, health, and environmental protection requirements. When you buy a new phone, a teddy bear, or a TV within the EEA, you can find the CE mark on them. CE marking also supports fair competition by holding all companies accountable to the same rules. CE marking is a part of the EU’s harmonisation legislation, which is mainly managed by Directorate-General for Internal market, Industry, Entrepreneurship and SMEs. The CE marking for Restriction of Hazardous Substances is managed by Directorate-General for Environment. Comprehensive guidance on the implementation of EU product rules can be found in the so-called Blue Guide.
| Panel type | VA |
|---|---|
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.43 x 0.43 mm |
| Active display area (W x H) | 1650.2 x 928.3 mm |
| Display diagonal (metric) | 189.5 cm |
| Number of displays | 1 |
| Horizontal scan range | 57 - 62 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| HDMI ports quantity | 2 |
|---|---|
| HDMI version | 2.0 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Digital signage flat panel |
|---|---|
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 500 x 500 mm |
| Bezel width (bottom) | 1.28 cm |
| Bezel width (side) | 1.28 cm |
| Bezel width (top) | 1.28 cm |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Purpose | Universal |
|---|---|
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 15 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 1.4/2.0 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 219 W |
|---|---|
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 219 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Built-in processor | Yes |
|---|---|
| Processor architecture | ARM Cortex-A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Display width | 1679 mm |
|---|---|
| Display depth | 68.8 mm |
| Display height | 957.1 mm |
| Display weight | 27.7 kg |
| Width | 1679 mm |
| Depth | 68.8 mm |
| Height | 957.1 mm |
| Weight | 27.7 kg |
| Package width | 1840 mm |
|---|---|
| Package depth | 177 mm |
| Package height | 1112 mm |
| Package weight | 39.1 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | No |
| Cables included | AC, HDMI, RS-232 |
| Mounting kit | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | Yes |
| Playback media | Y |
|---|---|
| User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export) |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Quick start guide | Yes |
|---|---|
| Power supply type | Internal |
