£2,394.44

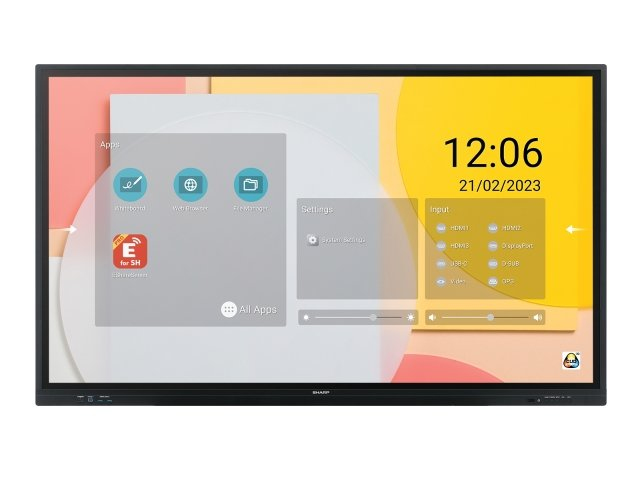

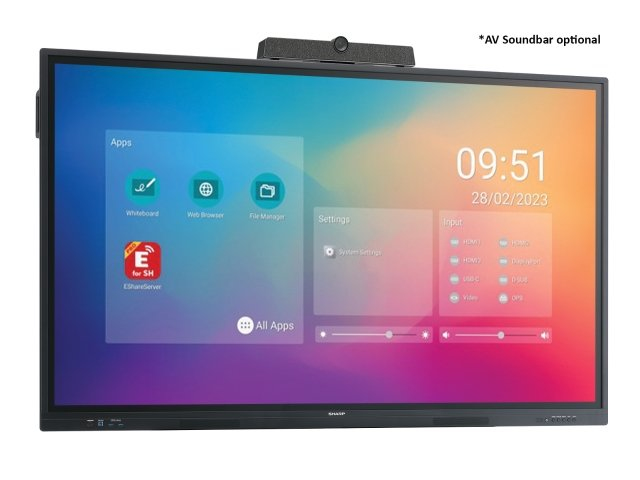

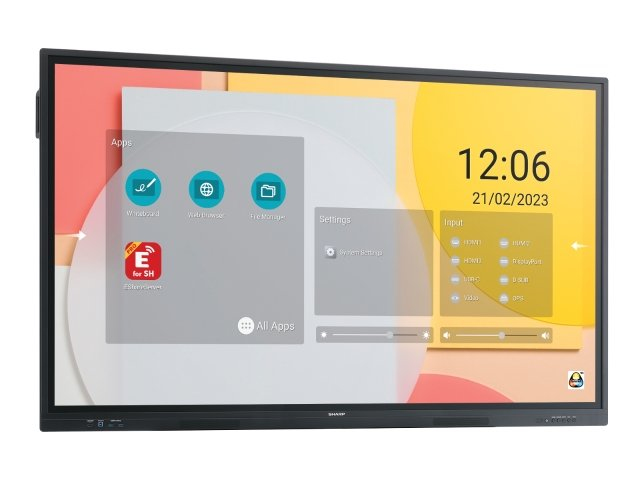

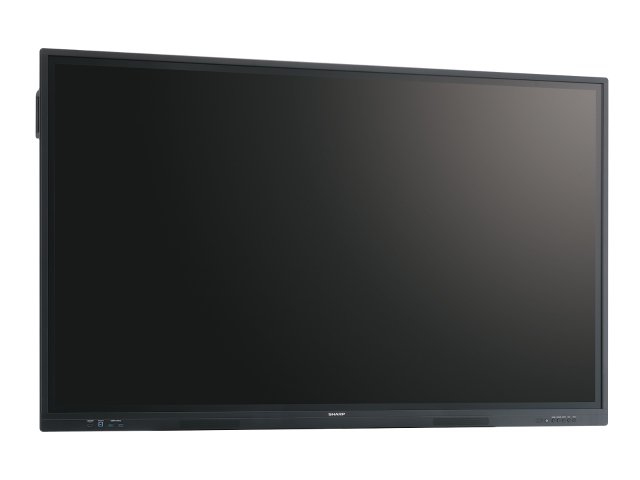

86 inch Sharp NEC PN-LC862 LCD Infrared Touch Display Black 3840 x 2160 450 cd/m² 16/7 Operation 3x HDMI 1x USB-C 1x DisplayPort 1x VGA VESA 800 x 600
Out of stock
Boost engagement in learning environments
When you need to engage your audience, you need to make your delivery interactive. NEC/Sharp’s expertise in touch screens for education brings forth the LC series, designed to meet the demand for Bring Your Own Device (BYOD) preferences. Equipped with seamless USB-C connectivity, just a single cable connects display to personal device whilst receiving charge in return. Size up your screen area by connecting another display or projector via HDMI-OUT to be seen by a bigger audience.
An all-in-one solution, the LC series features pre-installed functionality for instant interactivity, and with the EShare feature, content can be wirelessly shared between devices for best collaboration amongst peers and mentors.
For higher education in classrooms and small work groups, the LC series offers low cost, easy to use functionality to boost engangement in learning environments.
| Panel type | IPS |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 2.18 m (86") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 450 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | Infrared |
| Number of simultaneous touchpoints | 20 |
| Multi-touch | Yes |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.372 x 0.372 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Surface hardness | 8 |
| HDMI ports quantity | 4 |
|---|---|
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 6 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-B ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) in | 1 |
| RS-232 interface | Yes |
| OPS module slot | Yes |
| Built-in speaker(s) | Yes |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 30 W |
| Product design | Digital signage flat panel |
|---|---|
| Placement supported | Indoor |
| Orientation | Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 5.32 cm |
| Bezel width (side) | 2.19 cm |
| Bezel width (top) | 2.19 cm |
| Mounting type | Wall |
| Purpose | Education |
|---|---|
| Operating hours (hours/days) | 16/7 |
| Pen type | Passive pen |
| HDCP | Yes |
| Power consumption (typical) | 500 W |
|---|---|
| Power consumption (standby) | 2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | Yes |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A55 |
| Processor cores | 4 |
| Internal memory | 8 GB |
| Internal storage capacity | 16 GB |
| Operating system installed | Android 11 |
| Display width | 1967.9 mm |
|---|---|
| Display depth | 87.1 mm |
| Display height | 1170.2 mm |
| Display weight | 65 kg |
| Package width | 2160 mm |
|---|---|
| Package depth | 225 mm |
| Package height | 1310 mm |
| Package weight | 81 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Stylus pen | Yes |
| Number of stylus pens | 2 |
| Power adapter included | Yes |
| Cables included | AC, USB |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
